Q4 - SERIES

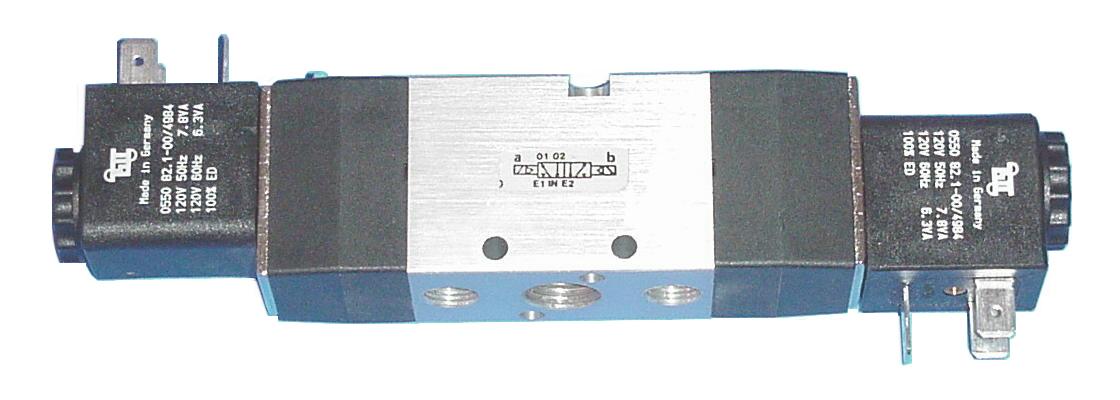

4 - WAY AIR VALVES 5 PORT - 2 & 3 POSITION SOLENOID OR AIR PILOT 1/4 " NPT PORTS 1/8" NPT EXHAUST PORTS



Printable Dimensions

PILOT TYPE	POSITION	PART NUMBER
SINGLE SOLENOID	2 POSITION SPRING RETURN	E414SS2 - VOLTAGE
DOUBLE SOLENOID	2 POSITION	E414DS2 - VOLTAGE
DOUBLE SOLENOID	3 POSITION SPRING CENTERED & BLOCKED	E414DS3 - VOLTAGE
SINGLE AIR PILOT	2 POSITION SPRING RETURN	E414SAP2
DOUBLE AIR PILOT	2 POSITION	E414DAP2
DOUBLE AIR PILOT	3 POSITION SPRING CENTERED & BLOCKED	E414DAP3



TECHNICAL INFORMATION:

MEDIA	COMPRESSED AIR (40 micron filtered)MICRON FILTRED)
PORTS	1/4" NPT & 1/8" NPT EXHAUST
LUBRICATION	NONE REQUIRED
OPERATING PRESSURE	22 - 115 PSI
OPER. TEMPERATURE	15 TO 120 DEGREES F
DUTY CYCLE	100 %
VOLTAGE TOLERANCE	+ 10% OR -10%
STD. VOLTAGES	12VDC, 24VDC, 110VAC
COIL CONNECTION	DIN CONNECTION (DIN 40050) IP65
MANUAL OVERRIDE	"PUSH IN" TURN LOCK MANUAL OVERRIDE
FLOW FACTOR	1.0 CV -2 POSITION & .79CV - 3 POSITION

Two Station Manifold

HOW TO ORDER MANIFOLDS: EXAMPLE: M412-02 M412 - MANIFOLD TYPE 02 = NUMBER OF STATIOND (UP TO 12)
