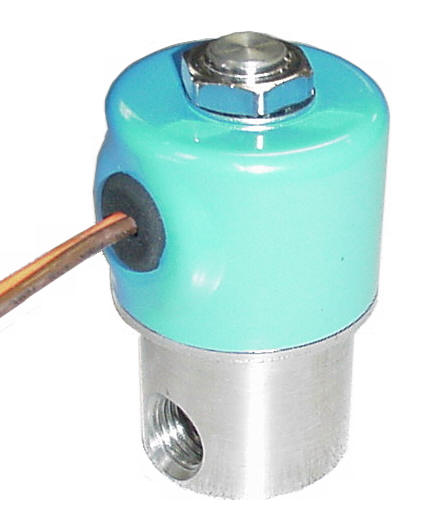

200 SERIES STAINLESS STEEL
2/2 NC DIRECT ACTING SOLENOID VALVE 1/8" OR 1/4" NPT

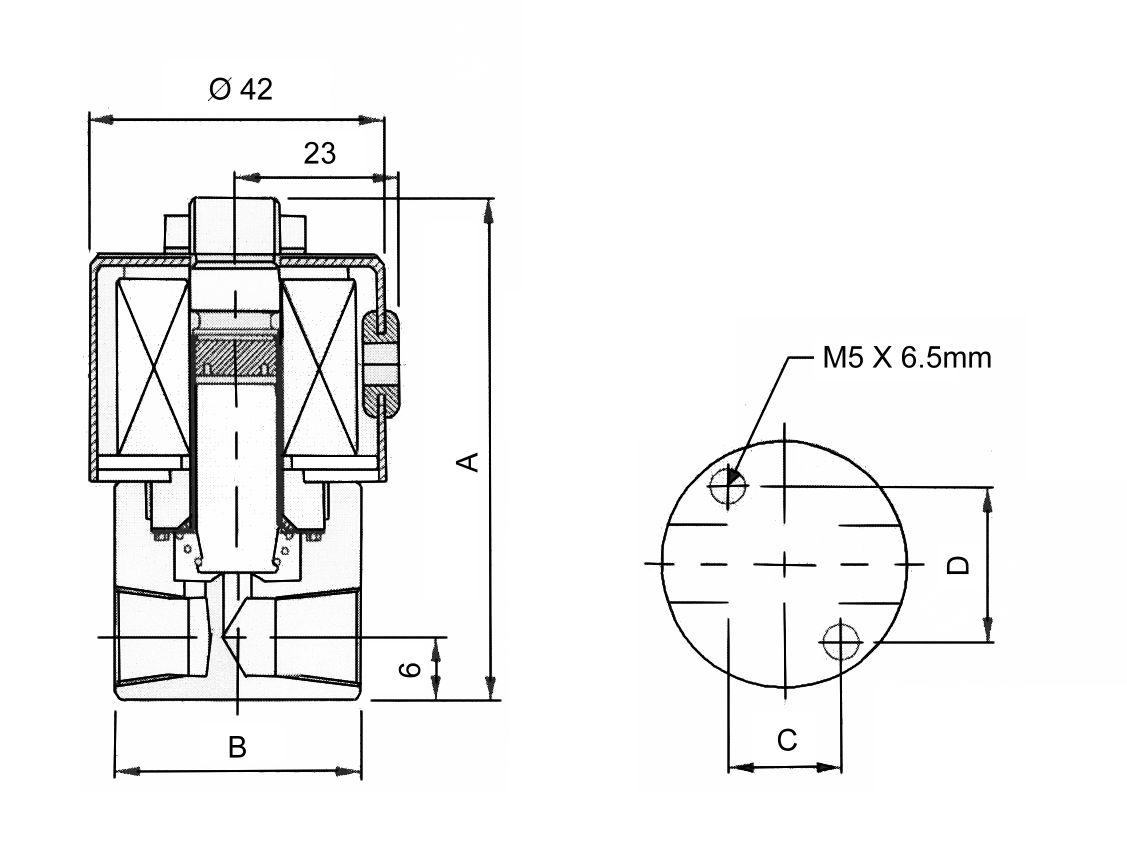

200 STAINLESS STEELdrawing



PORTS
A
B
C
D
1/8" NPT
69
30
15.2
17.8
1/4" NPT
70
35
16
22





PORTS
ORIFICE
CV
PRESSURE - PSI
PART CODE
MIN
MAX - AC
MAX - DC
1/8" NPT
1/16"
.10
0
580
290
218SSA
3/32"
.21
0
360
145
218SSB
1/8"
.33
0
215
115
218SSC
5/32"
.43
0
130
85
218SSD
1/4" NPT
1/16"
.10
0
580
290
214SSA
3/32"
.21
0
360
145
214SSB
1/8"
.31
0
215
115
214SSC
5/32"
.43
0
130
85
214SSD
3/16"
.50
0
100
45
214SSE



SEAL MATERIAL

SEAL CODE
SEAL TYPE
FLUID TEMP. RANGE
MEDIA
B
NBR (BUNS N)
-50 TO 122 DEG. F
AIR, WATER, OIL W/O ADDITIVES
V
VITON
-50 TO 176 DEG. F
AIR, WATER, FUELS, LUBRICANTS, & COOLANTS
E
EPDM
-50 TO 248 DEG. F
HOT WATER / STEAM, BRAKE FLUID, & HYD. FLUID

ORDERING: PART CODE - SEAL - VOLTAGE

EXAMPLE: 218SSA - V - 120VAC
