200 SERIES

2/2 NC DIRECTING ACTING

SOLENOID VALVE 3/8" OR 1/2" NPT





PORT SIZE	FUNCTION	ORIFICE SIZE MM	PRESSURE PSI MAX.	FLOW FACTOR CV	ADD VOLTAGE TO GET PART NUMBER EX: 234-110VAC
3/8"	2/2NC	13	AC 120/ DC 100	4.0	238-
1/2"	2/2 NC	13	AC 120 / DC 100	4.0	212-

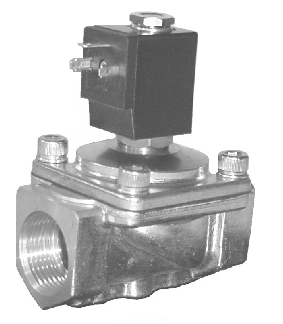

NOTE: SHOWN WITH TYPE 2 DIN CONNECTOR
(CONNECTOR MUST BE ORDERED SEPARATELY)



- COIL CAN BE ROTATED 360 DEGREES

- COIL CAN BE CHANGED UNDER PRESSURE

- FAST RESPONSE - DIRECT ACTING- SPRING RETURN

- PERFECT FOR LOW PRESSURE APPLICATION

- INSTALLATION: SLANT PIPE OR WATER LEVEL

- DIE CAST BRASS BODY





NOTE: SAME DIMENSIONS FOR 3/8" & 1/2"
