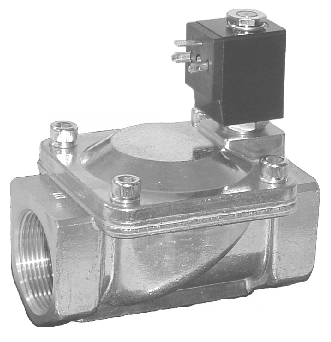

300 SERIES
2/2 PILOT ACTING
SOLENOID VALVE 2" NPT





FUNCTION	ORIFICE SIZE MM	PRESSURE PSI MAX.	FLOW FACTOR CV	ADD VOLTAGE TO GET PART NUMBER EX:SS322-110VAC
2/2 NC	50	7-140	48	SS322-

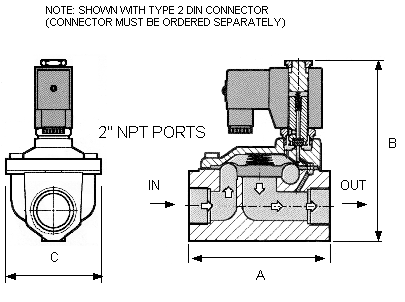

NOTE: SHOWN WITH TYPE 2 DIN CONNECTOR

(CONNECTOR MUST BE ORDERED SEPARTELY)





COIL CAN BE ROTATED 360 DEGREES
COIL CAN BE CHANGED UNDER PRESSURE
FAST RESPONSE
ABLE TO HANDLE MORE PRESSURE THAN DIRECT ACTING
INSTALLATION: SLANT PIPE OR WATER LEVEL
DIE CAST BRASS BODY
AVAILABLE ONLY STAINLESS STEEL VERSION
