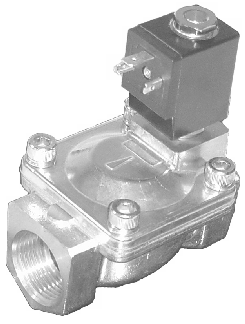

300 SERIES

2/2 NC PILOT ACTING

SOLENOID VALVE 3/4" & 1" NPT

























*NOTE: FOR STAINLESS STEEL VERSION USE PREFIX "SS" EXAMPLE: SS334 - 120VAC



NOTE: SHOWN WITH TYPE 2 DIN CONNECTOR
(CONNECTOR MUST BE ORDERED SEPARATELY)



- COIL CAN BE ROTATED 360 DEGREES
- COIL CAN BE CHANGED UNDER PRESSURE
- FAST RESPONSE
- ABLE TO HANDLE MORE PRESSURE THAN DIRECT ACTING
- INSTALLATION: SLANT PIPE OR WATER LEVEL
- DIE CAST BRASS BODY
- AVAILABLE IN STAINLESS STEEL VERSION
