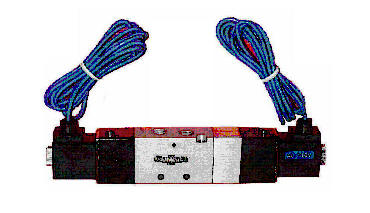

E4 - SERIES

4 - WAY AIR VALVES

5 PORTS - 2 & 3 POSITION

SOLENOID OR AIR PILOT

1/8" NPT PORTS









Printable Dimensions



PILOT TYPE	POSITION	PART NUMBER
SINGLE SOLENOID	2 POSITION SPRING RETURN	E418SS2 - VOLTAGE
DOUBLE SOLENOID	2 POSITION	E418DS2 - VOLTAGE
DOUBLE SOLENOID	3 POSITION SPRING CENTERED & BLOCKED	E418DS3 - VOLTAGE
SINGLE AIR PILOT	2 POSITION SPRING RETURN	E418SAP2
DOUBLE AIR PILOT	2 POSITION	E418DAP2
DOUBLE AIR PILOT	3 POSITION SPRING CENTERED & BLOCKED	E418DAP3





TECHNICAL INFORMATION:

MEDIA	COMPRESSED AIR (40 micron filtered)MICRON FILTRED)
PORTS	1/8" NPT
LUBRICATION	NONE REQUIRED
OPERATING PRESSURE	22 - 115 PSI
OPER. TEMPERATURE	15 TO 120 DEGREES F
DUTY CYCLE	100 %
VOLTAGE TOLERANCE	+ 10% OR -10%
STD. VOLTAGES	12VDC, 24VDC, 110VAC
COIL CONNECTION	18" FLYING LEADS OR OPTIONAL DIN CONN.
MANUAL OVERRIDE	"PUSH IN" NON -LOCKING MANUAL OVERRIDE
FLOW FACTOR	.62 CV -2 POSITION & .5 CV - 3 POSITION

TWO STATION MANIFOLD

HOW TO ORDER MANIFOLDS: EXAMPLE: M412-02 M412 - MANIFOLD TYPE 02 = NUMBER OF STATIOND (UP TO 12)
